Prismatic LFPMost shippedGenuine EVE

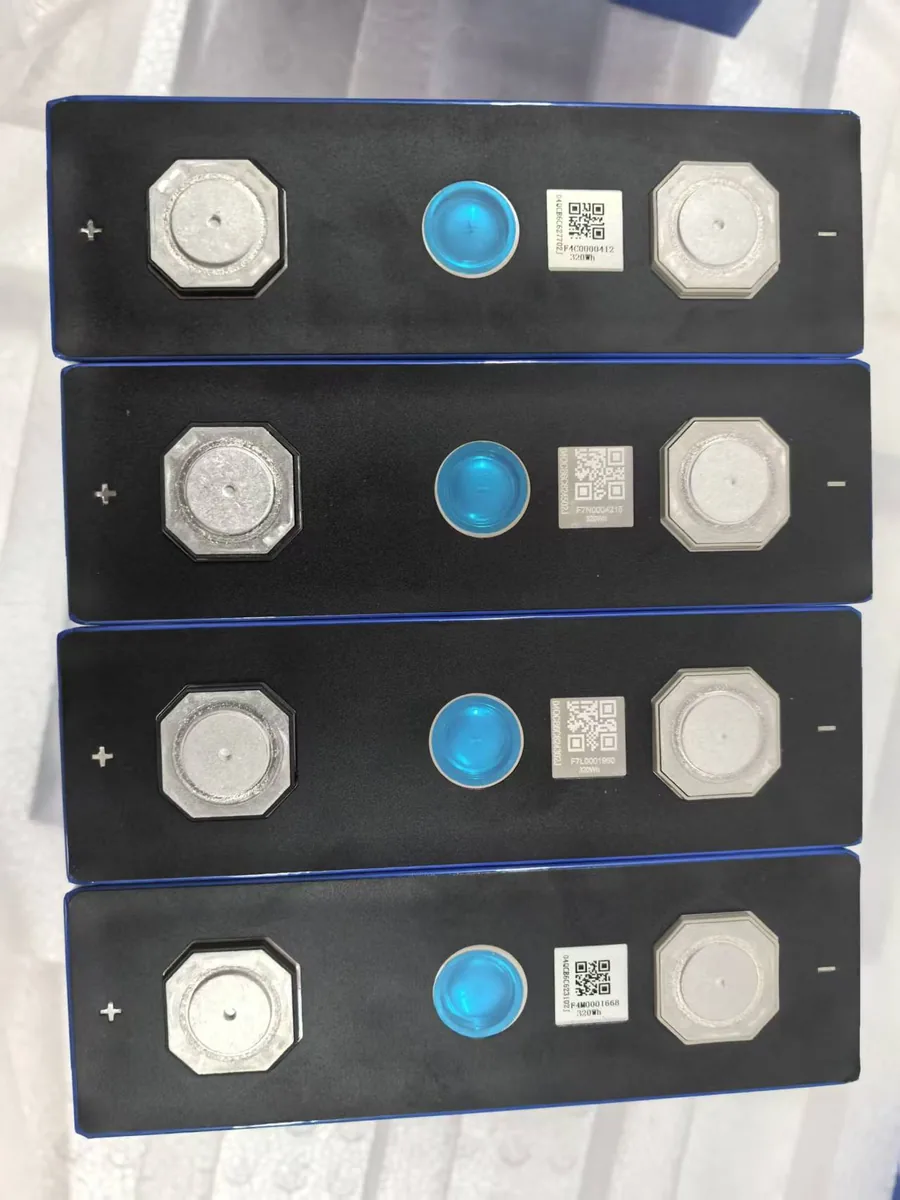

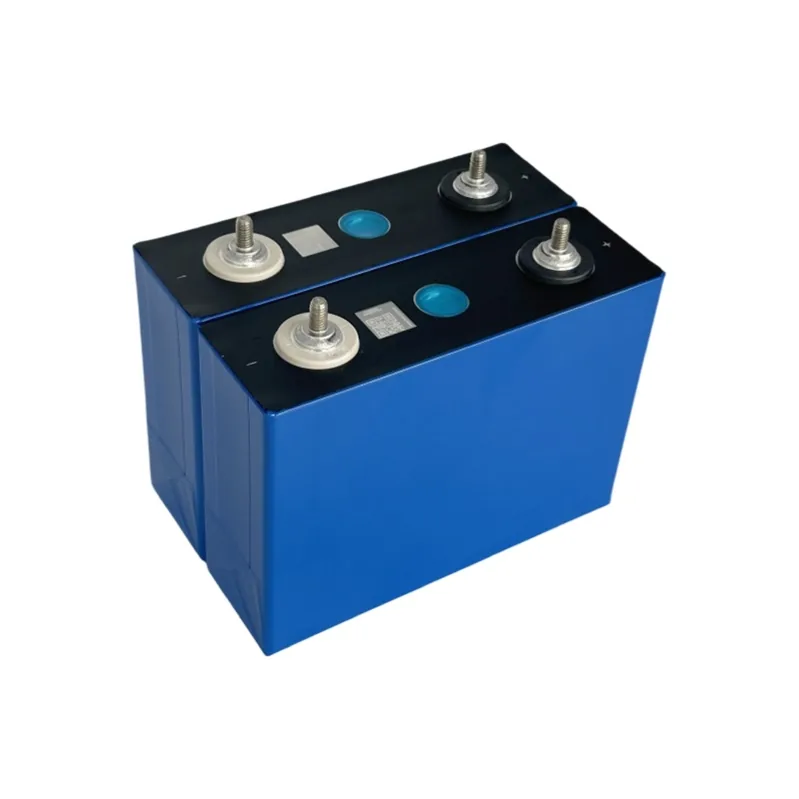

EVE LF100 — 3.2V 100Ah LFP Cell
Genuine EVE Grade-A prismatic LFP — direct from the factory, never grade-B. The cell behind most home solar banks in Pakistan.
100 Ah
Nominal capacity
3.2 V
Nominal voltage
6,000+
Cycle life
2.0 kg
Weight
174 × 72 × 207 mm
Size
0.5C / 0.5C
Charge / discharge
100% genuine EVE · factory-direct · scannable QR · matched in Lahore
Application scenarios
Where it’s used.
Home solar storageTelecom & base stationsUPS & backupCommercial ESS
Key advantages
Why this cell.
High energy density
6,000+ cycle life
High safety (LFP)
Low internal resistance
Grade-A matched
Full life cycle
Cell to system
From a cell to a full system.
We supply genuine cells and build matched modules, packs and full racks — message us with your kWh target.
Cell
→Module
→Battery pack
→Battery rack
→System
Quality
Certified & genuine.
ISO 9001CEUN38.3RoHSREACHULIEC
Technical parameters
The full spec sheet.
| Parameter | Specification |
|---|---|
| Chemistry | LiFePO4 (LFP) |
| Nominal voltage | 3.2V |
| Capacity | 100Ah at 0.5C, 25°C |
| Cycle life | 6,000+ at 80% DoD |
| Operating temp | -20°C to +55°C |
| Internal resistance | < 0.5 mΩ |
| Dimensions | 174 × 72 × 207 mm |
| Weight | 2.0 kg |
| Origin | EVE Energy, China |
| Warranty | 5 years prorated |
