Wirell PCB Relays
Wirell power relays — T73 (up to 10A) and T90 (up to 40A). Silver-alloy contacts, stocked by the thousand.
The relays engineers keep in stock.
Wirell's T73 (JQC-3F, up to 10A) and T90 (JQX-15F, up to 40A) PCB-mount relays. Silver-alloy contacts switch motor and inrush loads without welding. Standard footprint, through-hole pins, next-day dispatch.
Silver-alloy contacts
Switch motor loads without welding.
Pure-copper coil
12 V / 24 V DC options.
Through-hole pins
Standard PCB footprint.
Two sizes
T73 for control, T90 for power.
Built for inductive loads.
Silver-alloy contacts and a sealed body let these relays switch motors, coils and transformers millions of times. The contacts do not weld shut the way cheaper parts do.

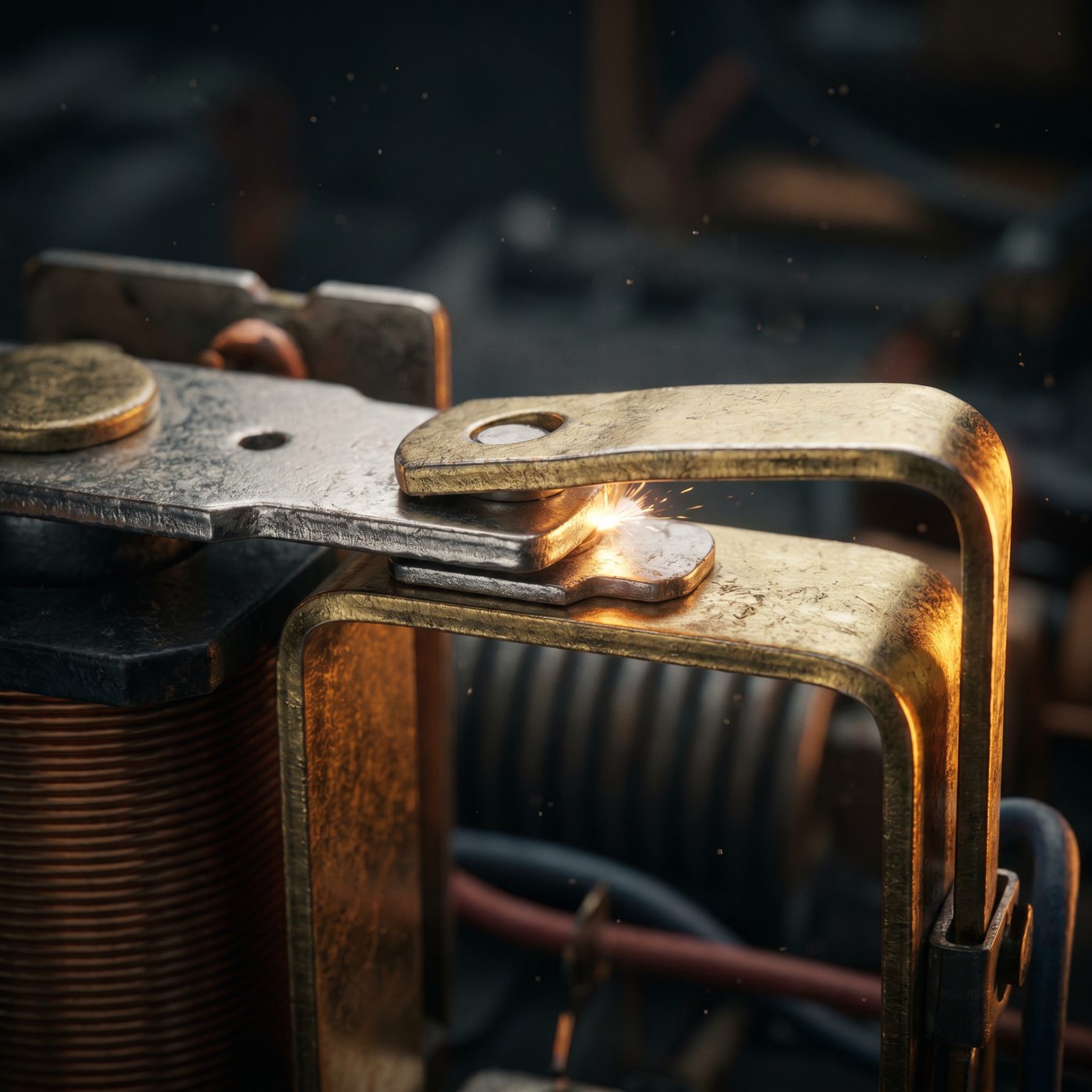

Silver-alloy contacts
Take motor and inrush loads without welding shut.
Sealed body
Keeps dust and solder flux out for a long, reliable life.

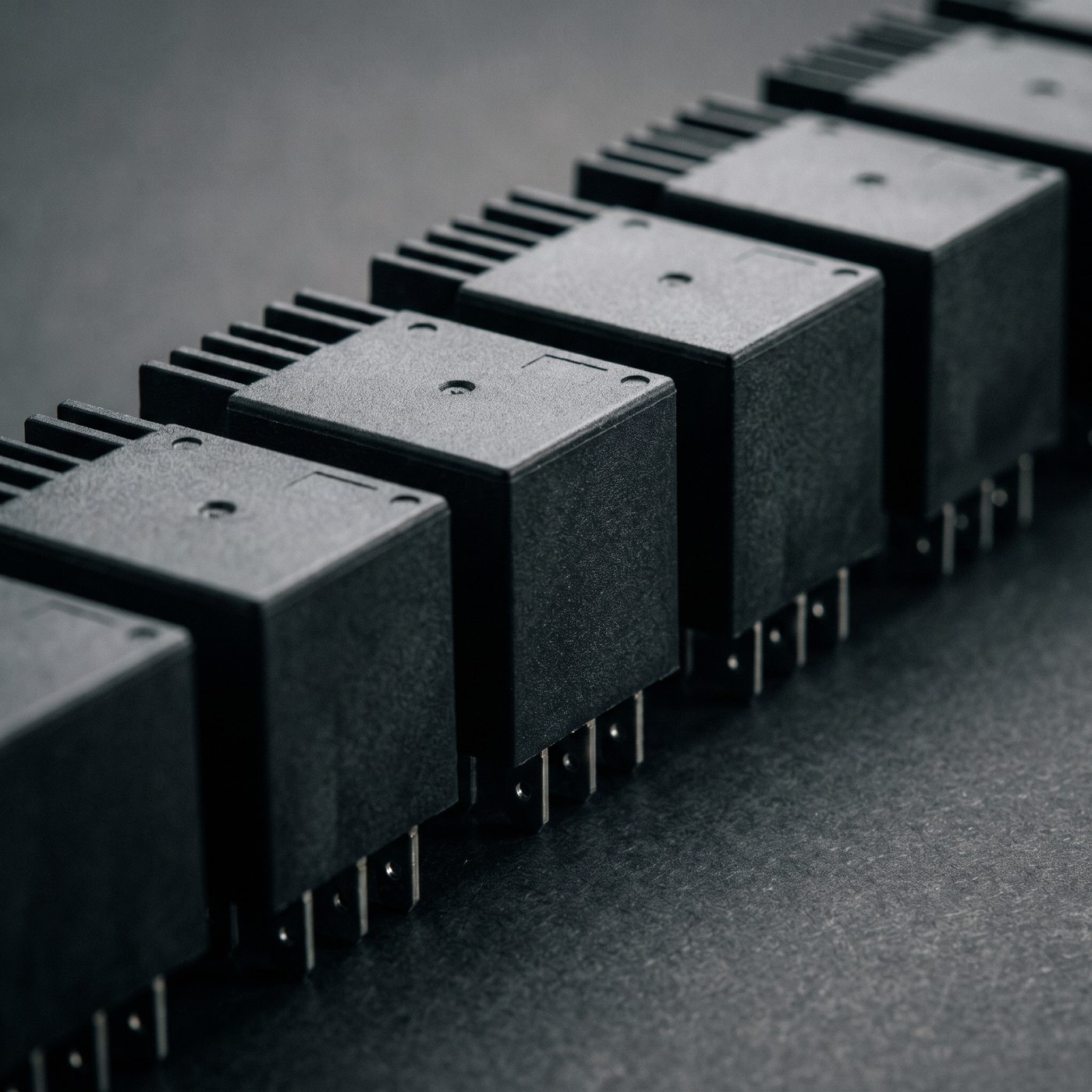

Millions of cycles
Up to 2,000,000 mechanical operations.

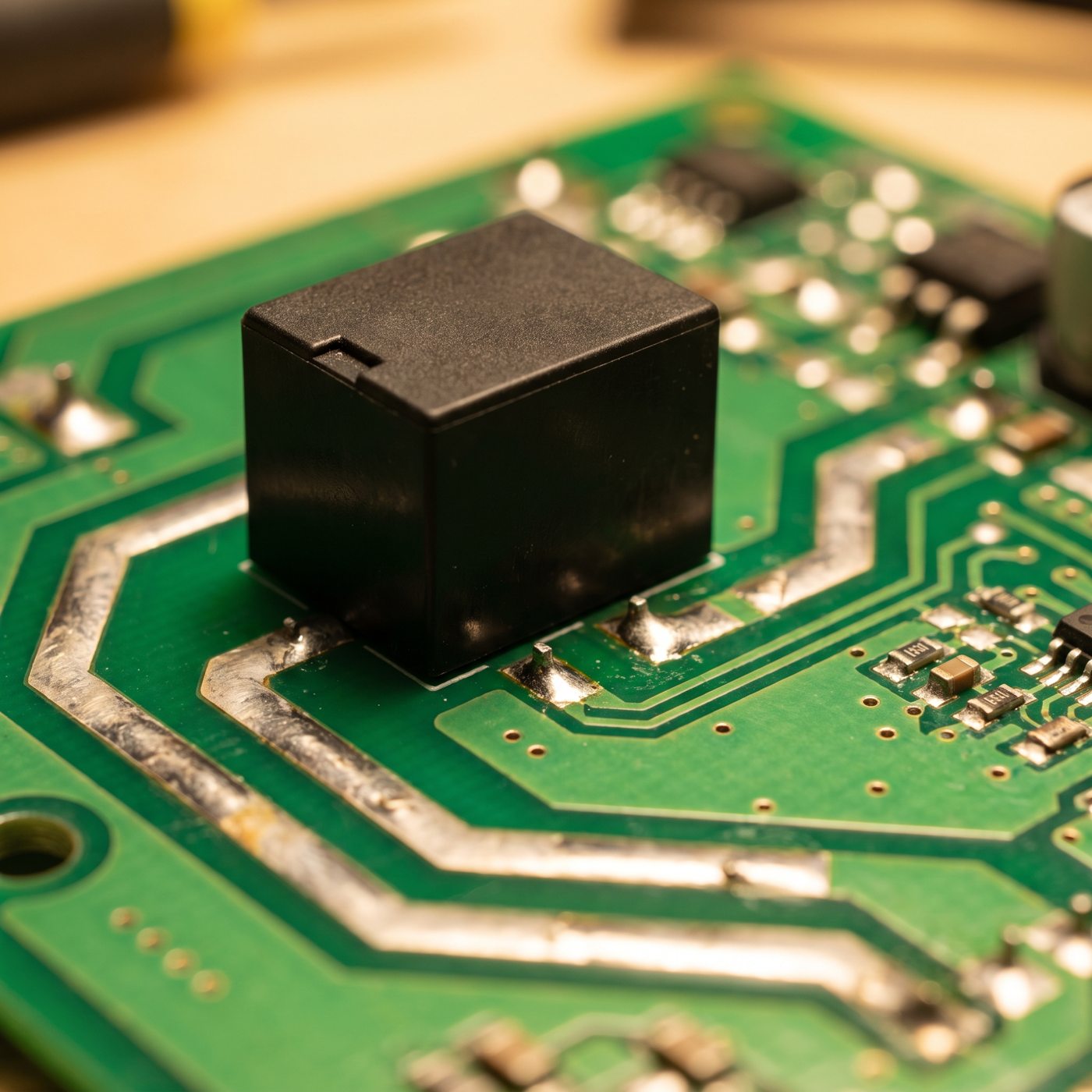

Standard footprint
Through-hole pins fit common PCB layouts.
Inside everything that switches power.
Inverters & UPS
Transfer and bypass switching in power electronics.
Stabilizer controllers
The switching heart of AVR and servo control boards.
Charge controllers
Solar charge and load-disconnect switching.
Automation panels
All-round control across industrial panels.
Small part, serious spec.
Up to 40 A @ 250 VAC
T90 takes real motor and power loads.

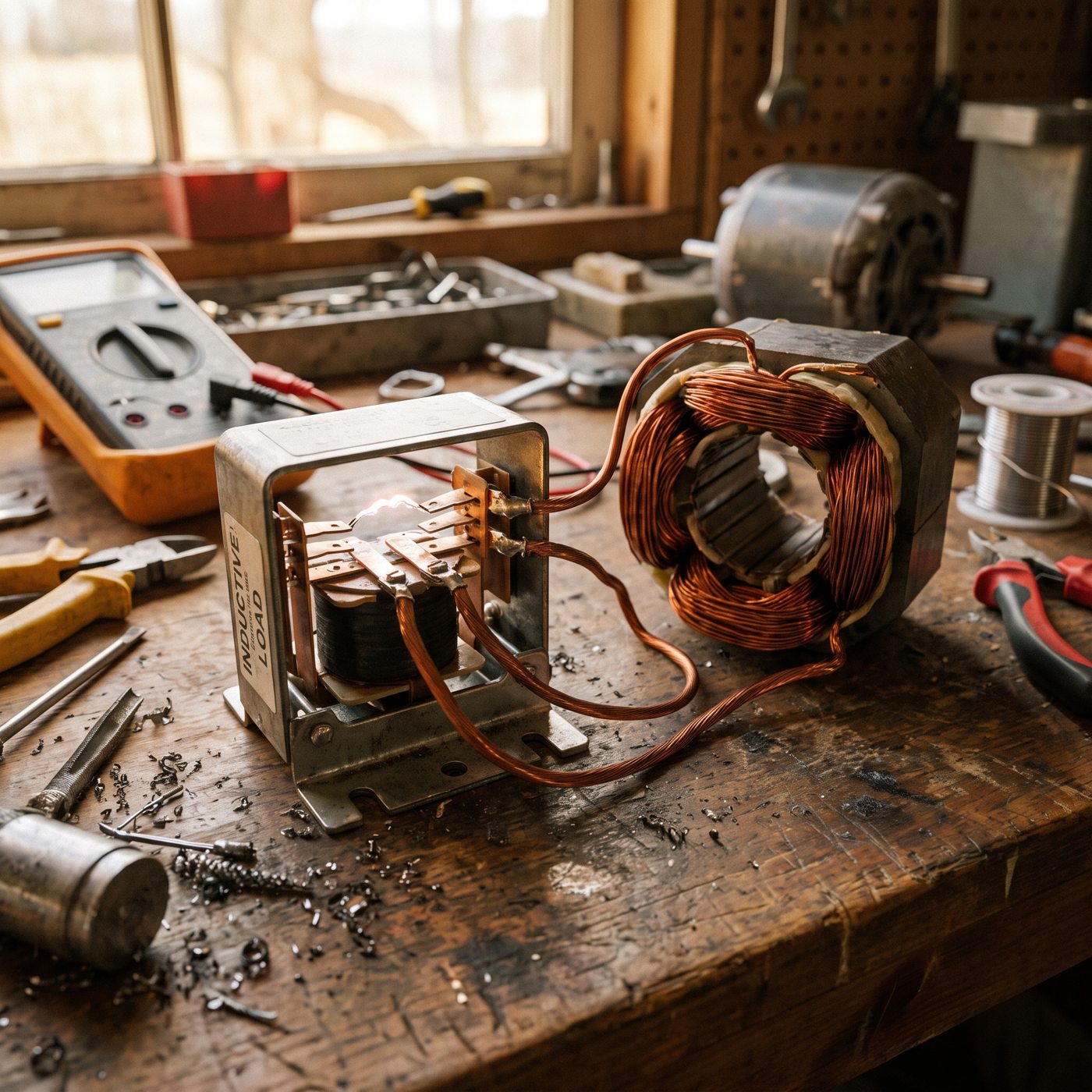

Inductive-load proof
Silver-alloy contacts that do not weld under motor loads.
≤10 ms operate
Fast, reliable switching.
2,000,000-cycle life
Built to outlast the board it sits on.

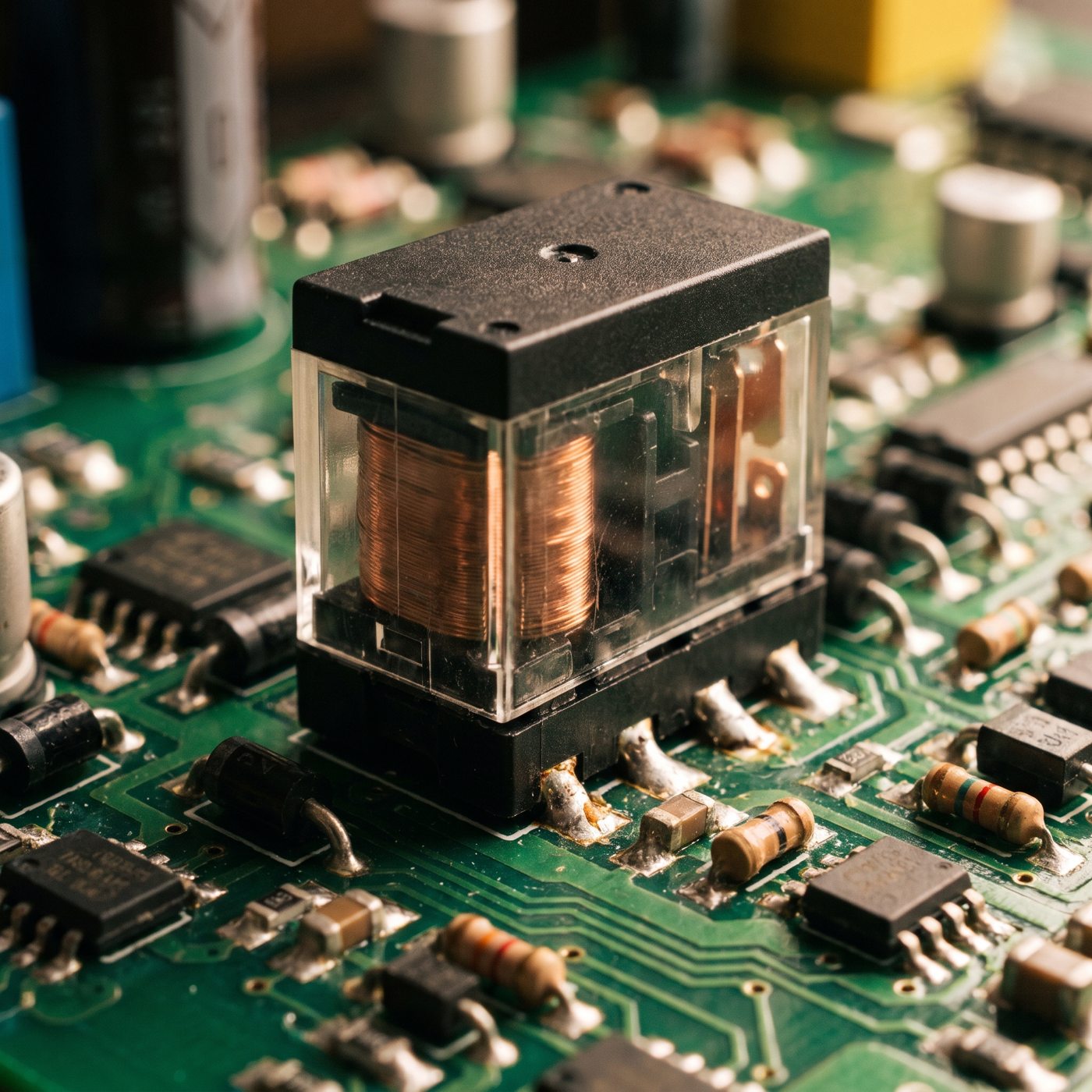

Standard footprint
Through-hole pins fit common PCB designs.

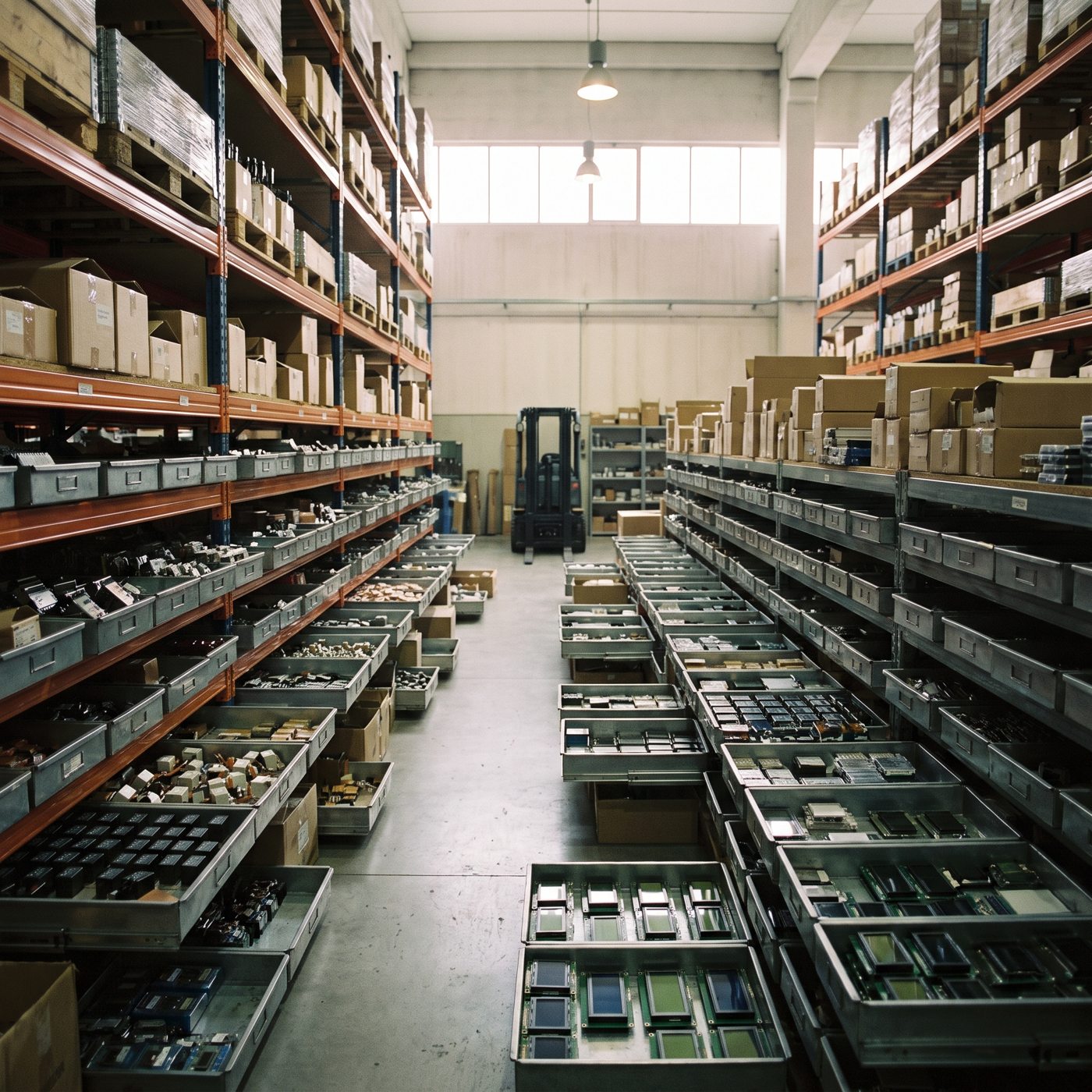

Stocked deep
Thousands on the shelf for next-day dispatch.
Compare every model.
See the specs of every model side by side. Find the one that fits your load.
| Parameter | T73 | T90 |
|---|---|---|
| Model | Wirell JQC-3F (T73) | Wirell JQX-15F (T90) |
| Contact rating | 7A @ 250VAC · 10A @ 125VAC · 5A @ 30VDC | 20A / 30A / 40A |
| Max switching power | 1750VA / 120W | — |
| Contact material | Silver alloy | |
| Coil | Pure copper (99%) | — |
| Operate / release time | ≤ 10ms / ≤ 5ms | < 15ms / < 10ms |
| Electrical life | 100,000+ cycles | |
| Mechanical life | 2,000,000+ cycles | |
| Insulation | 500MΩ · 750VAC / 1 min | 500MΩ · 1500VAC / 1 min |
| Mounting | PCB through-hole | |
| Operating temp | -25°C to +55°C | -40°C to +70°C |
| Max switching capacity | — | 30A @ 250VAC / 30VDC |
| Switching power | — | AC 7500VA / 900W · DC 5000VA / 600W |
| Contact form | — | 1A / 1B / 1C |
| Coil power | — | 0.9W (DC) · 12VA (AC) |
We can build custom setups too. Send us your load details and we will suggest the right model.
