SVCSVC Servo Stabilizer — 30kVA Ultra Low Voltage (60V)
Starts working at 60V. Single-phase 30kVA, 100% pure copper.
- Ships with calibration certificate and load test report
- Custom input ranges and configurations on request
- Delivery across Pakistan — charges confirmed on WhatsApp before you pay
- No online payment — a real person confirms your order on WhatsApp

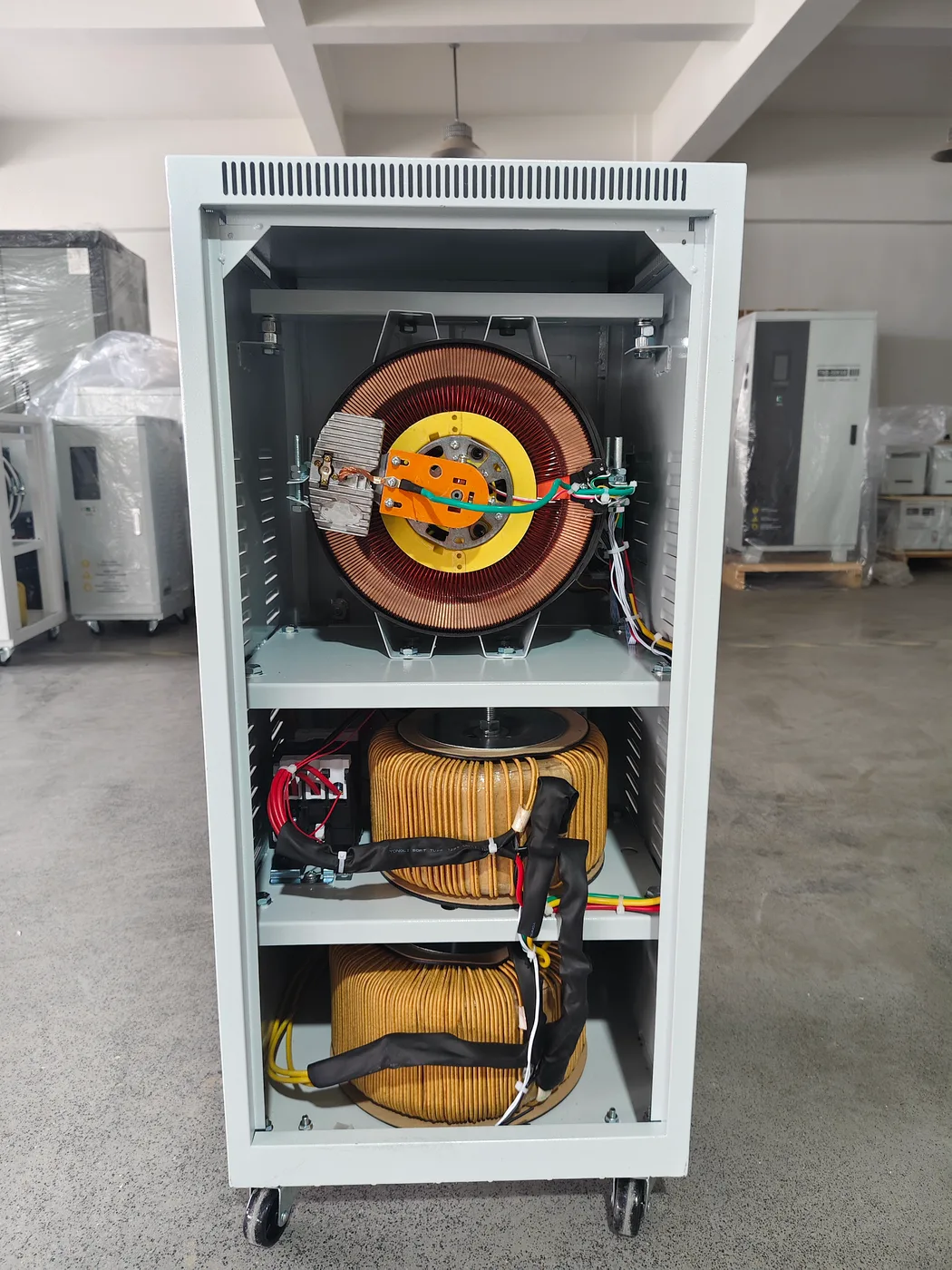

Most stabilizers cut off below 150V. This one starts working at 60V. It is a 30kVA single-phase servo stabilizer for the weakest lines in the country — the factory areas of Faisalabad, Karachi and Lahore, Peshawar, Swabi and Mardan, and Gilgit and Skardu, where voltage drops all day and machines stall. A servo motor sweeps a slider across a 100% pure copper autotransformer and holds a steady 220V from 60V all the way up to 250V. Copper windings only, no aluminium. This is a single-phase unit, not three-phase.
Key features

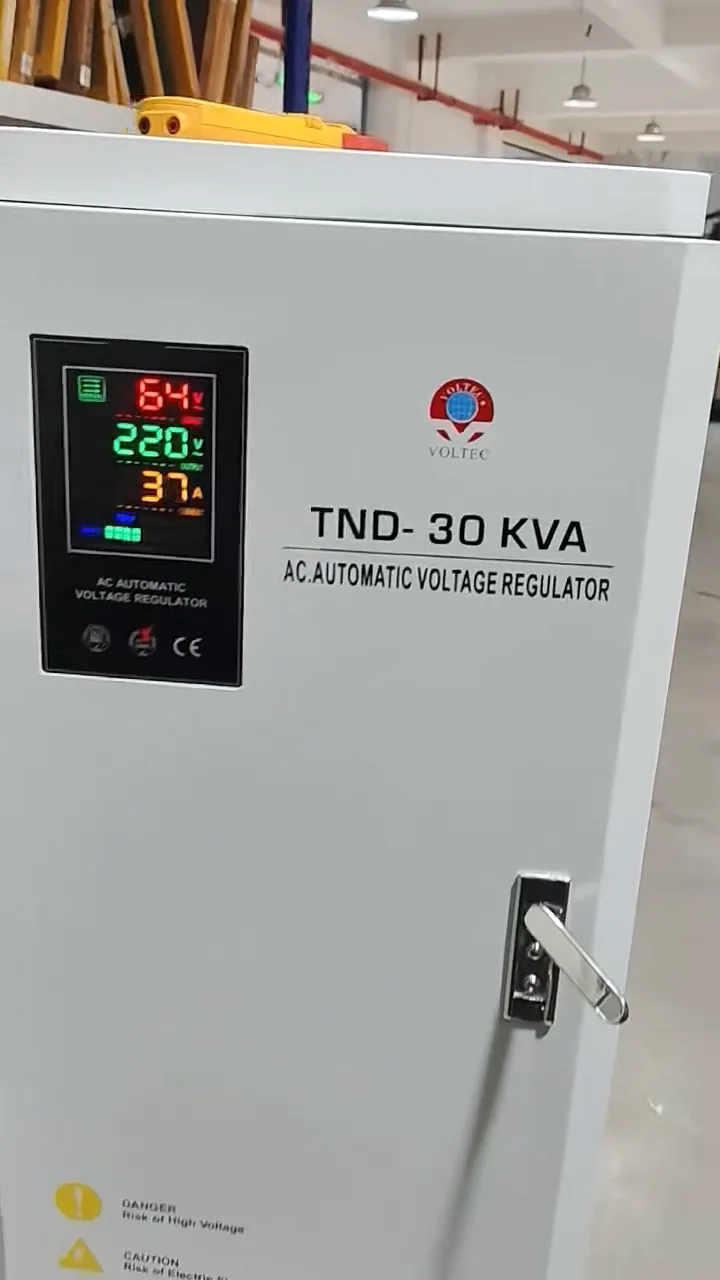

- Works from 60V — where an ordinary stabilizer has already cut off

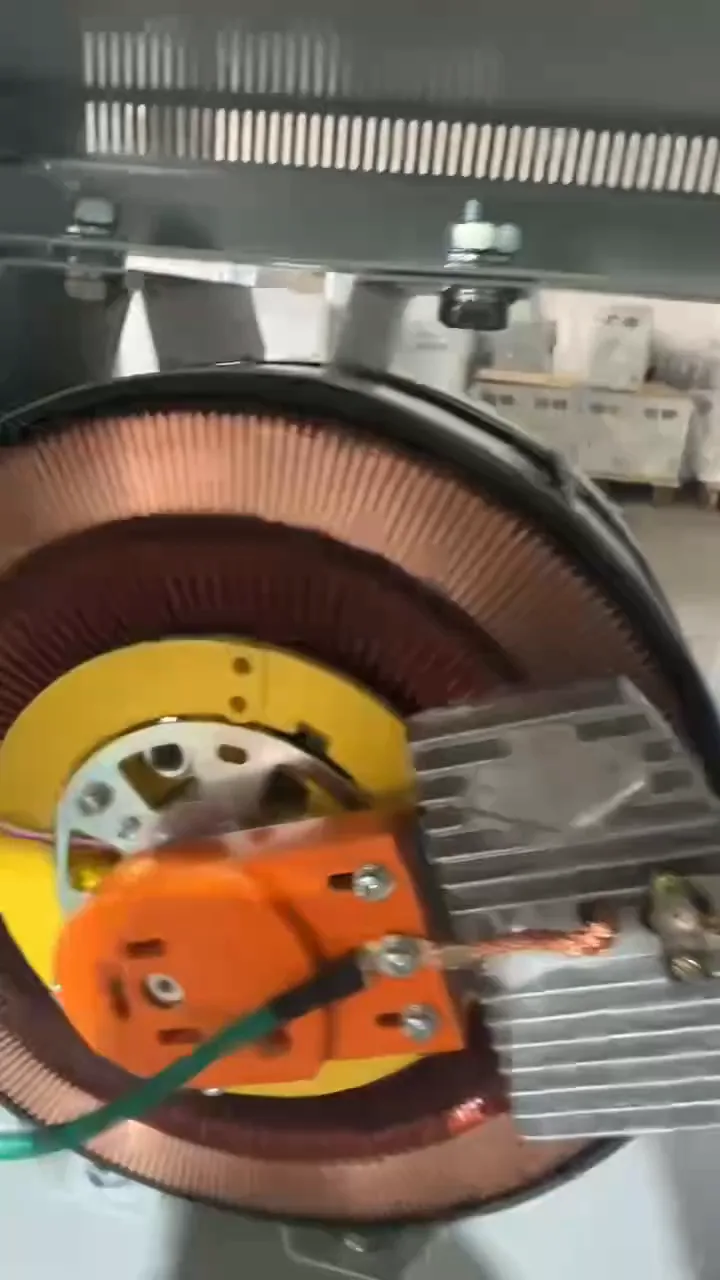

- 100% pure copper windings and autotransformer. No aluminium.
- 30kVA single-phase — this is not a three-phase unit

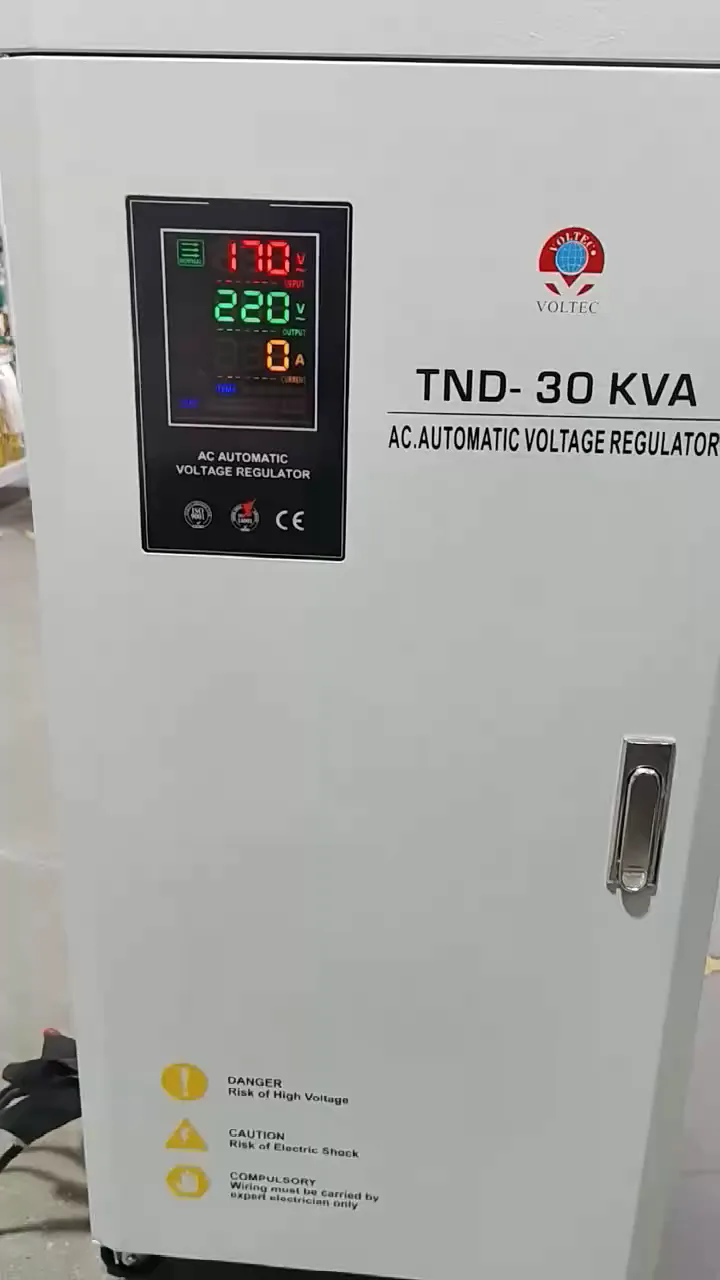

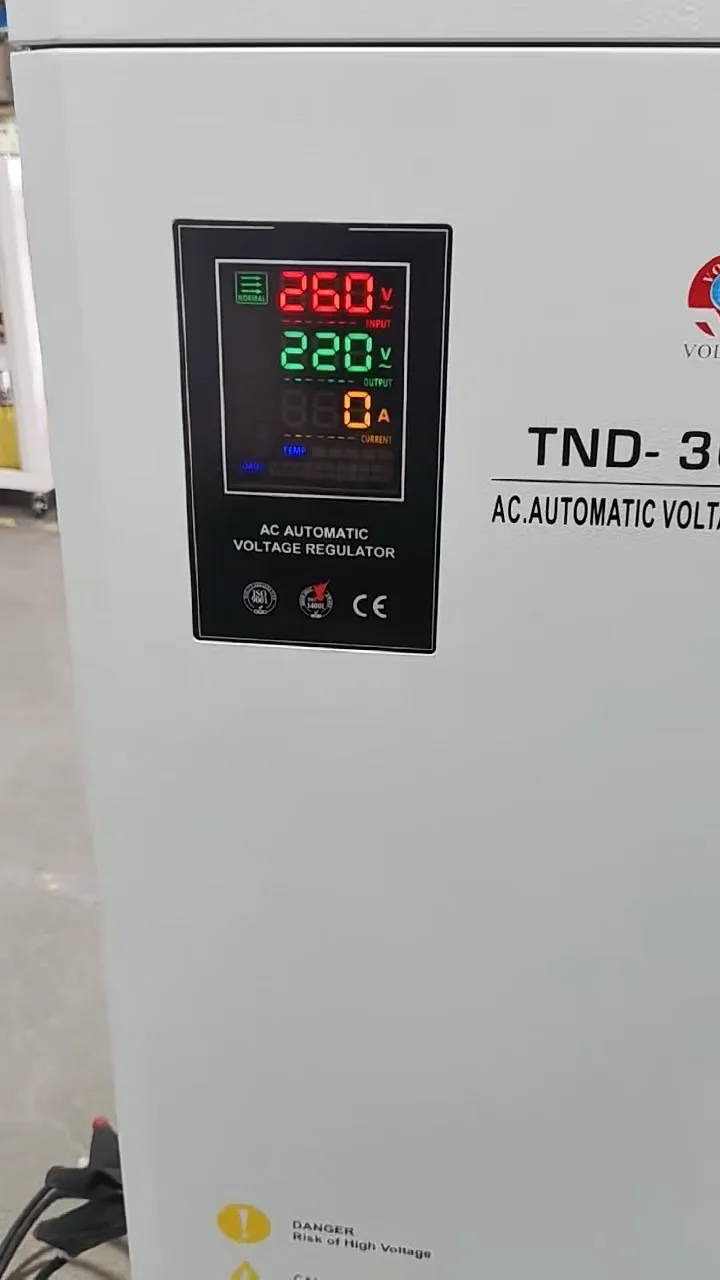

- Holds 220V ±3% from 60V right up to 250V input

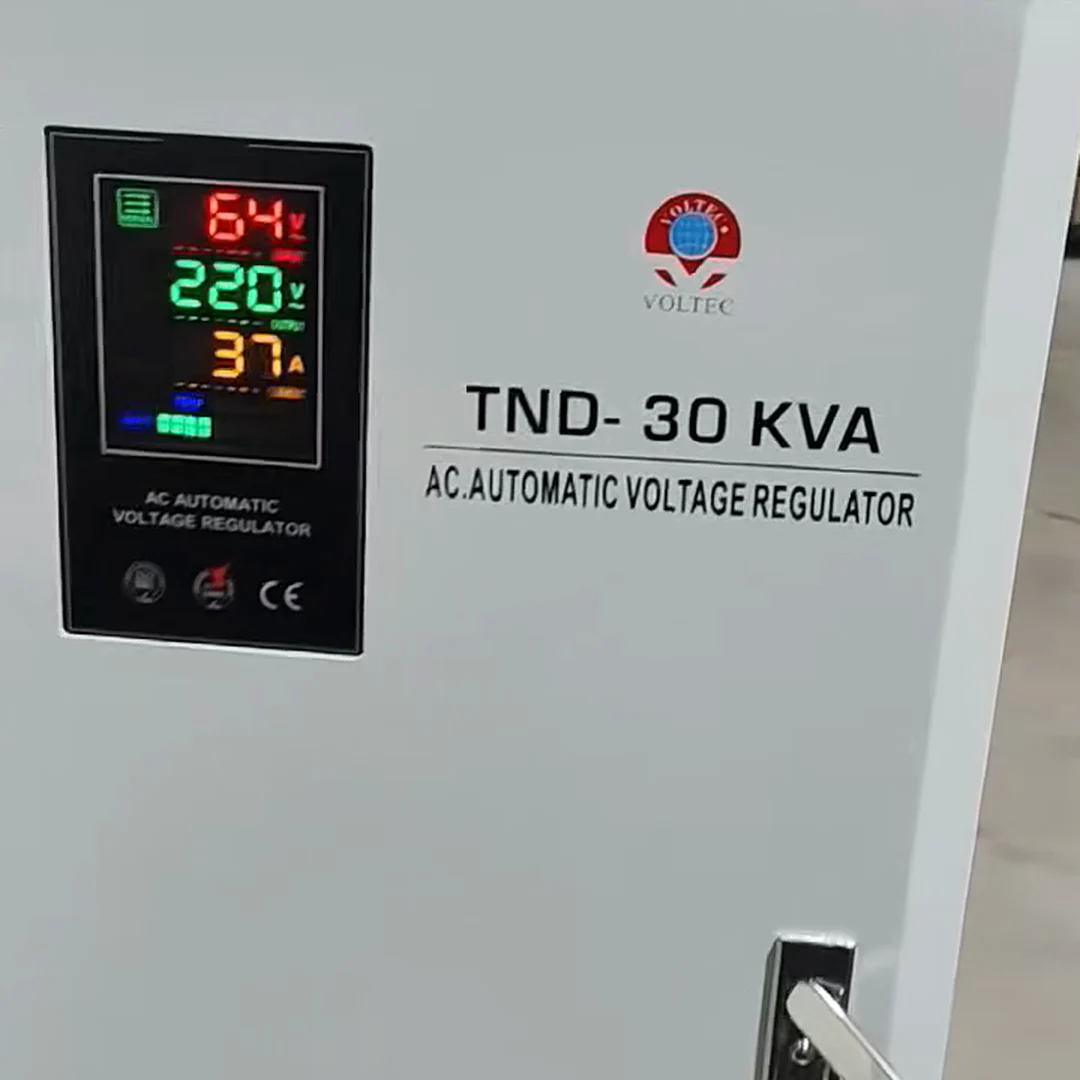

- LED panel shows input volts, output volts, load current and temperature
- High and low-voltage cutoff, overload, over-temperature and time-delay restart
- Floor cabinet on castor wheels — roll it where you need it
Specifications
| Parameter | Specification |
|---|---|
| Technology | SVC — servo motor |
| Capacity | 30kVA, single-phase (not 3-phase) |
| Input range | 60V – 250V AC |
| Output | 220V ±3% |
| Rated current | 136A at 220V |
| Windings | 100% pure copper — autotransformer and coils |
| Efficiency | > 96% |
| Display | LED — input, output, load current, temperature |
| Protection | High/low-voltage cutoff, overload, over-temp, time-delay restart |
| Model | TND-30 KVA |
| Mounting | Floor cabinet on castor wheels |
Ships with a factory calibration certificate and 72-hour load test report. Bulk pricing, custom configurations, and shipping anywhere in Pakistan — message us on WhatsApp for a same-day reply.
